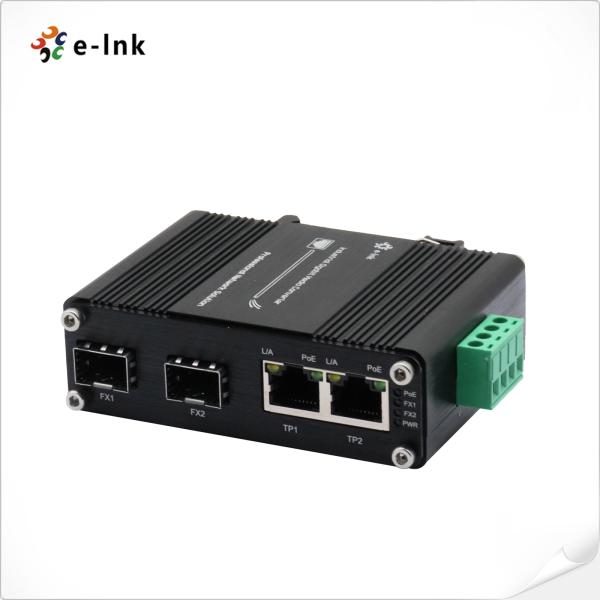

Name: SFP 2 Ports Ruggedized Gigabit Industrial POE Switch 48 Volt 12 Volt
Brand: E-link
Price: 29.9 USD

Brand Name : E-link

Model Number : LNK-IMC202GP-SFP

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : $29.9-389

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 5-10 working days

Packaging Details : Fiber Media Converter Standard Package

POE : IEEE 802.3at Power over Ethernet

Connector : 2 x RJ45 + 2 x SFP

Input Power : 12~48VDC, 2-pin terminal block

Output Power : 48VDC

Power Consumption : 65W Max.

Mounting Options : DIN-Rail / Wall-mount

Contact Now

Mini Gigabit Industrial POE Switch 12-48V 2x 10/100M SFP + 2x Gigabit POE Ports

Industrial POE Switch Advantages

Specifications

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Interface
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max. 5W Max. 0.1A@48VDC (PoE not in use)
PoE
Port:	RJ45 Port 1 ~ Port 2
Max. Power per Port:	30W Max per port (Alternative B Mode)
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

SFP 2 Ports Ruggedized Gigabit Industrial POE Switch 48 Volt -12 Volt

Order Information

Model	Description
LNK-IMC202GP-SFP	Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
