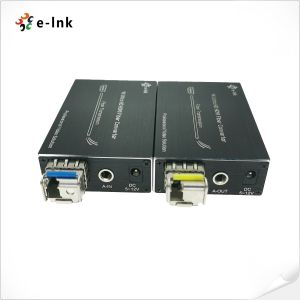

4K HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

Product Categories
E-link China Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4K HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-MHA4K-80

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1pair

Price : $79-739

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000pairs/month

Delivery Time : 5-12 working days

Packaging Details : HDMI Fiber Transmitter Receiver Standard Export Package

Product Name : 4K 30Hz HDMI over Fiber Extender

Transmission distance : Up to 80KM (Over Single-mode Fiber)

HDMI Version : HDMI 1.4

Video Resolution : Up to 4K*2K 30Hz

Cable Type : Single Mode Single Fiber LC

Power Supply : 5~12V DC

Audio Interface : 3.5MM external stereo audio

Audio Format : LPCM, Dolby TrueHD, DTS-HD Master Audio

Dimensions (LxWxH) : 2.87 x 1.73 x 0.69in (73x44x17mm)

Weight : 60g / 0.13 lb

Contact Now

4K 30HZ HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

HDMI Video Fiber Converter Advantage

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Supports All Modes up to 4K*2K@30Hz Resolution

► Support external stereo audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photo detector

4K HDMI Video Over Fiber Extender Overview

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

HDMI Fiber Transmitter Receiver with External Audio Technical Indexes

Input Signals

HDMI

Connector

Female HDMI type A

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Color space, 420, 400

Dynamic EDID

Plug & Play, no need to learn

Audio Interface

3.5MM external stereo audio

Fiber Connector

SFP/LC

Bandwidth

10.3Gbps

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 to + 60°C

Storage Temperature

-20 to + 85°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5~12V DC

Power dissipation

<5W

Safety Approvals

CE, FCC, Rohs

4K HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

4K HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

4K HDMI Video Over Fiber Extender with External Audio Single Mode Transmitter & Receiver

HDMI Fiber Extender with Audio Ordering Information

Model

Description

LNK-MHA4K-MM

Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S20

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S40

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK-MHA4K-S80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
