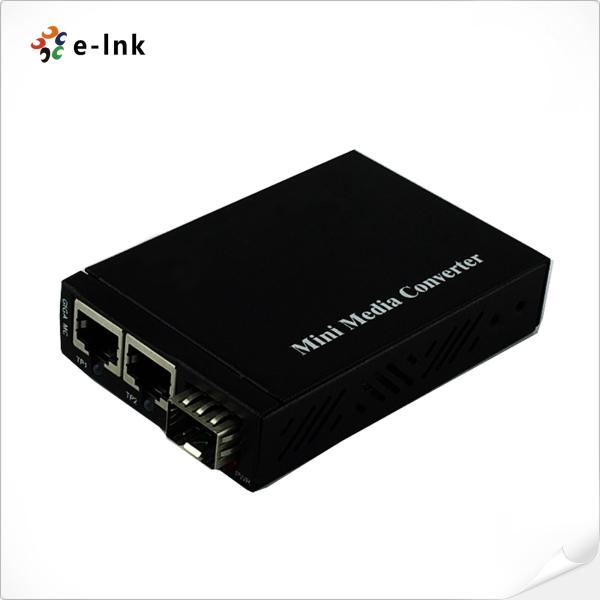

Mini 2x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Media Converter

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-308

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : $39-270

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimension : 60mm (W)×20mm (H)×90 mm (L)

Operating Temperature : 0~50ºC

Input voltage : DC 5V~12V

Power consume : <3W

Maintaining humidity : 5% ~ 90% non-condensing

Contact Now

Mini 2x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Media Converter

Product Advantages

► 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter

► Support one SFP Fiber port and two RJ-45 ports

► Support IEEE802.3, IEEE802.3Z ,1000Base-TX/FX standards

► SC/LC/ST/FC Optional

► DIP switch to set different configurations

► Compact package size


Technical Indexes


Parameter

Specifications

Access mode

10/100/1000Mbps

Standard

IEEE802.3,IEEE802.3u,IEEE802.3Z,IEEE802.3x

1000Base-FX or 100Base-FX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Fiber: Depend on SFP Transceiver

Cat-5 twisted pairs: 100m

Conversion means

Store and Forward mode or Cut-Through mode

Flow control

Full duplex: flow control;

Half duplex: back pressure

Input voltage

DC 5V~12V

Power consume

<3W

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

60mm (W)×20mm (H)×90 mm (L)

Overview

The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc. The compact size of Mini Media Converter is suitable for space limit installation and Mini size is the ideal media converter for enterprise Plug-and-play, providing store-and-forward data transmission Wide voltage from 5V to 12V.

Application

Mini 2x 10/100/1000Base-T RJ45 to 1x 1000Base-X SFP Slot Gigabit Ethernet Media Converter

Ordering Information


Model

Description

LNK-308

8x 10/100/1000M Unmanaged Ethernet Switch, DC5V/1A
