Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 60W
PoE++ Media Converter
Product Overview:
The LNK-IMC1200GP60-SFP is a high-performance industrial media converter designed to deliver advanced network connectivity and power distribution in demanding environments. It features one 100/1000Base-X SFP fiber port that supports a wide range of pluggable SFP modules—including both single-mode and multi-mode fiber types with single or dual fiber cores—enabling customizable, long-distance optical communication with exceptional flexibility.
Equipped with two 10/100/1000BASE-T copper Ethernet ports, this converter provides high-power PoE++ support compliant with IEEE 802.3bt standards, delivering up to 60W per port to efficiently operate power-intensive devices such as PTZ cameras, wireless APs, and industrial VoIP systems.
Housed in a ruggedized metal casing, the device operates reliably across an extended temperature range of -40°C to 75°C and meets EN55022 EMI standards, ensuring stable performance in electrically noisy settings. It supports both half and full-duplex modes with auto-negotiation for seamless integration into diverse network topologies.
Designed for easy deployment, the converter offers DIN-rail mounting compatibility, making it ideal for industrial control cabinets, telecom racks, and smart grid applications.
Features Description:
-
Dual Gigabit Copper Ports with Auto MDI/MDI-X: Two auto-sensing 10/100/1000BASE-T RJ45 interfaces provide seamless cable compatibility and eliminate crossover requirements in mixed-network environments.
-
Multi-Rate SFP Fiber Slot with Auto-Detection: Features one dual-mode SFP port that automatically recognizes 100Base-FX or 1000Base-X fiber modules, supporting both single-mode and multi-mode transceivers for flexible fiber connectivity.
-
Tri-Mode PoE/PoE+/PoE++ Compliance: Supports IEEE 802.3af (15.4W), IEEE 802.3at (30W), and high-power 60W PoE++ over all four pairs, enabling versatile device powering for access points, pan-tilt-zoom cameras, and industrial phones.
-
Adaptive Duplex Operation & Auto-Negotiation: Automatically configures full/half-duplex modes and negotiates optimal transmission speeds for efficient bandwidth utilization across diverse network architectures.
-
Energy Efficient Ethernet (EEE) Technology: Reduces power consumption by up to 80% during low-data activity periods while maintaining full compatibility with IEEE 802.3az standards.
-
Industrial-Grade Terminal Block Power Input: Accepts 48-57VDC wide-range power supply through secure screw-terminal connections, ensuring stable operation in environments with voltage fluctuations.
-
Flexible DIN-Rail & Wall-Mount Design: Enables quick installation in control cabinets, server racks, and compact industrial enclosures with universal mounting options.
-
Extended Temperature Hardened Design: Operates reliably in extreme environments from -40°C to 75°C (-40°F to 167°F), making it suitable for unheated warehouses, outdoor cabinets, and harsh industrial settings.
Application Scenarios
-
High-Power PoE++ Deployments: Supports power-intensive devices including PTZ cameras, 802.11ax wireless systems, and industrial IoT equipment with 60W PoE++ output per port
-
Fiber-Optic Network Extension: Provides single-mode/multi-mode fiber connectivity for long-distance backbone links in campus networks, manufacturing plants, and transportation infrastructure
-
Industrial Automation Systems: Delivers reliable connectivity for motor drives, PLC controllers, and HMI panels in EMI-intensive manufacturing environments
-
Outdoor & Ruggedized Applications: Operates reliably in wide-temperature environments (-40°C to 75°C) for solar farms, railway communications, and intelligent transportation systems (ITS)
-
Power Utility & Smart Grid Networks: Enables substation automation, grid monitoring, and distribution control with enhanced electrical isolation and surge protection
-
IP Surveillance and Security Systems: Powers high-performance security devices including thermal cameras, access control systems, and intercoms over extended distances
-
Wireless Carrier Infrastructure: Supports 4G/5G small cells, microwave backhaul, and WLAN deployments with fiber connectivity and remote powering capabilities
-
DIN-Rail Industrial Enclosures: Facilitates space-efficient installation in control cabinets, distribution boxes, and modular industrial racks
Specifications
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 125W Max. |
| LED Indicators: |
| PWR: | Power Status |
| PoE: | PD Plug Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Order Information
| Model | Description |
| LNK-IMC1200GP60-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |

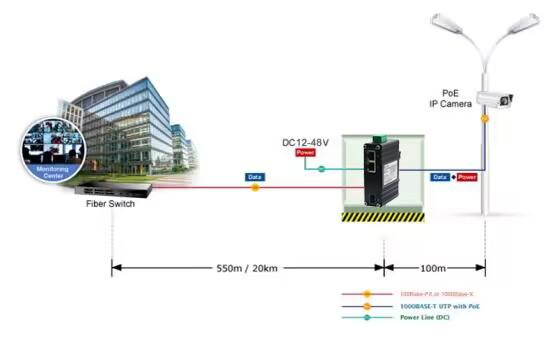

Application Display Diagram
