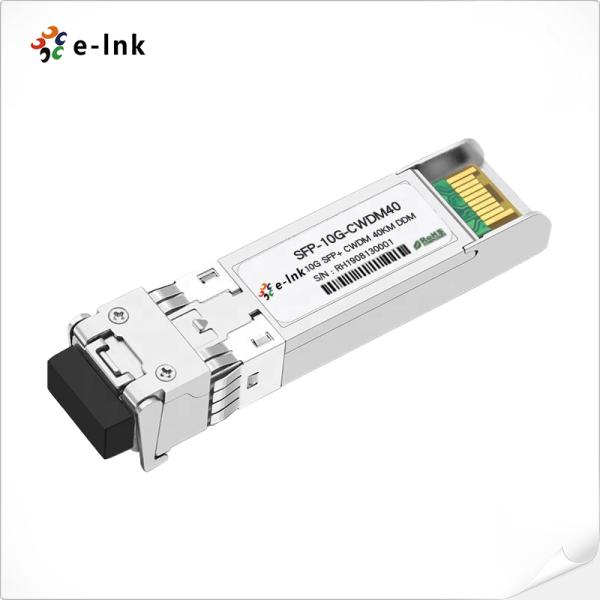

10Gb/s 40km CWDM SFP+ Transceiver

Brand Name : E-link

Model Number : LNK-CSFP-10Gxx-40

Place of Origin : China

MOQ : 1 pcs

Price : $5-2579

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Storage TemperatureStorage Temperature : -40~85°C

Maximum Supply Voltage : -0.5~4V

Relative Humidity : 0~85%

Case operating Temperature : 0~70°C

Supply Current : 500mA

Power Consumption : 1.8W

Contact Now

10Gb/s 40km CWDM SFP+ Transceiver

Advantages

Ø Supports 9.95 to 11.3Gb/s bit rates

Ø Hot-Pluggable

Ø Duplex LC connector

Ø 1270～1610nm CWDM EML transmitter, PIN photo-detector

Ø SMF links up to 40km

Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface

Ø Power Supply: +3.3V

Ø Power consumption<1.8W

Ø Temperature Range: 0~ 70°C

Ø RoHS compliant


Overview

E-LINK's LNK-CSFP-10Gxx-40 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-40 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1270 ～ 1610nm CWDM EML transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 40km links. The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Technical Indexes

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:

Center Wavelength

λc

λ-6.5

λ+6.5

nm

spectral width

△λ

1

nm

Average Optical Power

Pavg

-1

+4

dBm

1

Laser Off Power

Poff

-30

dBm

Extinction Ratio

ER

8.2

dB

Transmitter Dispersion Penalty

TDP

3.2

dB

2

Relative Intensity Noise

Rin

-128

dB/Hz

3

Optical Return Loss Tolerance

20

dB

Receiver Section:

Center Wavelength

λr

1260

1620

nm

Receiver Sensitivity (OMA)

Sen

-16

dBm

4

Stressed Sensitivity (OMA)

SenST

-14

dBm

4

Los Assert

LOSA

-27

-

dBm

Los Dessert

LOSD

-17

dBm

Los Hysteresis

LOSH

0.5

dB

Overload

Sat

0

dBm

5

Receiver Reflectance

Rrx

-12

dB



Application

Ø 10GBASE-ER/EW Ethernet

Ø Sonet OC-192/SDH

Ø 10G Fibre channel

Ø CWDM Networks


Product Tags:

10Gb/s CWDM SFP+ transceiver



40km SFP+ fiber transceiver



CWDM SFP+ transceiver with warranty


Quality 10Gb/s 40km CWDM SFP+ Transceiver for sale

10Gb/s 40km CWDM SFP+ Transceiver Images
